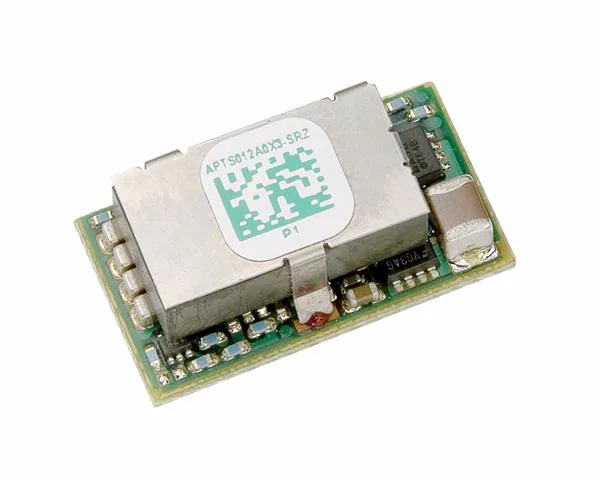

Why You Should Always Choose APTS012A0X3-SRZ

Modern power systems face challenges like maintaining frequency stability, addressing voltage regulation issues, and ensuring robustness against load disturbances. You need a solution that tackles these problems effectively. The APTS012A0X3-SRZ, a non-isolated PoL module, is the ideal choice for such demands. This advanced DC-DC converter, the APTS012A0X3-SRZ, features a wide input voltage range, adjustable output voltage, and high output current. Its exceptional efficiency and reliability align perfectly with the latest advancements in power management technology. By minimizing energy waste and enhancing system stability, the APTS012A0X3-SRZ ensures your devices consistently perform at their peak.

Key Takeaways

• The APTS012A0X3-SRZ works at 94% efficiency, saving energy and improving power systems.

• Tunable Loop™ technology lets you adjust the module's response. This keeps the output voltage steady even with changing loads.

• Advanced heat control helps the APTS012A0X3-SRZ work well in hot or cold conditions, stopping it from overheating.

• The module's wide input voltage and adjustable output voltage make it useful for many jobs, like telecom and factory systems.

• Safety features like overcurrent and overheat protection keep it working safely, even in tough conditions.

How the APTS012A0X3-SRZ Enhances Power Efficiency

High Efficiency and Reduced Energy Waste

You need a power solution that minimizes energy loss while maximizing performance. The APTS012A0X3-SRZ achieves an impressive 94% efficiency, making it one of the most energy-efficient options available. This non-isolated PoL module reduces energy waste during voltage conversion by using advanced design principles. Its configuration ensures that more power is delivered to your devices, rather than being lost as heat. Features like overcurrent protection (OCP) and overtemperature protection (OTP) further enhance efficiency by maintaining stable operation under varying load conditions. With the APTS012A0X3-SRZ, you can optimize power distribution without compromising on energy efficiency.

Tunable Loop™ Technology for Dynamic Response

Modern power systems demand flexibility and precision. The APTS012A0X3-SRZ incorporates Tunable Loop™ technology, allowing you to customize the module’s dynamic response to suit your specific application. This feature ensures that the module adapts quickly to changes in load conditions, maintaining stable output voltage and reducing the risk of system instability. Whether you’re managing power distribution in a data center or a telecommunications network, this technology provides the adaptability you need for seamless operation. By fine-tuning the response, you can achieve greater control over your power systems and enhance overall efficiency.

Advanced Thermal Management for Stability

Thermal stability is critical for reliable power distribution. The APTS012A0X3-SRZ excels in this area with its advanced thermal management capabilities. Its compact design minimizes heat generation, while its ability to operate efficiently across a wide temperature range (-40°C to 85°C) ensures consistent performance in demanding environments. This DC-DC converter also includes built-in safeguards like overtemperature protection (OTP), which prevents overheating and extends the module’s lifespan. By maintaining thermal stability, the APTS012A0X3-SRZ ensures your systems remain reliable and efficient, even under heavy workloads.

Key Features of the APTS012A0X3-SRZ

Wide Input Voltage Range and Programmable Output

The APTS012A0X3-SRZ offers a wide input voltage range, making it adaptable to various power supply requirements. This flexibility ensures compatibility with different applications, from telecommunications to industrial systems. The table below highlights the input voltage range and its benefits:

In addition to its wide input range, the module features a programmable output voltage. You can adjust the output voltage between 0.69Vdc and 5.5Vdc using an external resistor. This capability allows you to fine-tune the module to meet specific power needs, enhancing flexibility in power management. The table below provides more details:

High Output Current and Compact Design

The APTS012A0X3-SRZ delivers up to 12A of output current, ensuring it can handle high-power demands with ease. This capability makes it suitable for applications requiring robust power delivery, such as servers and data centers.

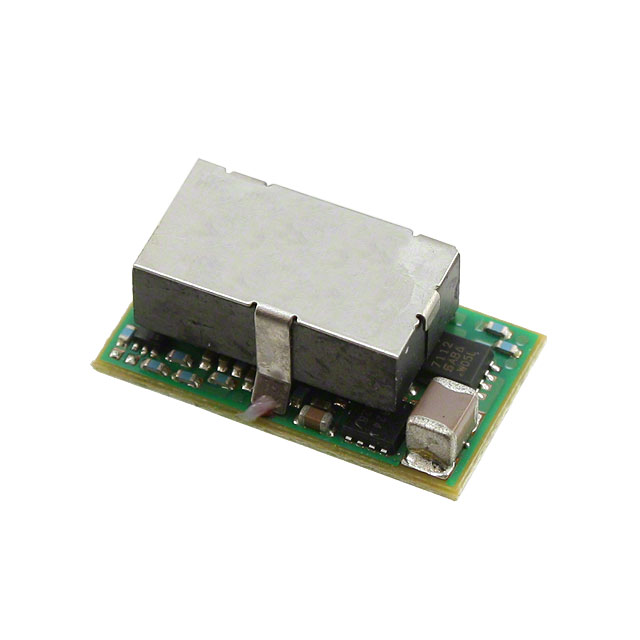

Its compact design further enhances its appeal. Measuring just 0.80 inches in length, 0.45 inches in width, and 0.33 inches in height, this module fits seamlessly into space-constrained environments. Whether you’re working on a densely packed circuit board or a compact device, the APTS012A0X3-SRZ provides the power you need without taking up unnecessary space.

Safety Features and Compliance Standards

Safety and reliability are critical in power management. The APTS012A0X3-SRZ meets stringent compliance standards, ensuring it operates safely in various environments. The table below outlines its compliance certifications:

In addition to compliance, the module includes built-in safety features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). These features protect your devices from potential damage, ensuring reliable operation even under challenging conditions.

Remote Control and Monitoring Capabilities

The APTS012A0X3-SRZ offers advanced remote control and monitoring features, making it an excellent choice for modern power systems. These capabilities allow you to manage and supervise your power modules with ease, ensuring optimal performance and safety.

One of the standout features is the Remote On/Off function. This allows you to control the module from a distance, providing convenience and flexibility. Whether you are working in a data center or an industrial setting, this feature ensures you can operate the module without needing physical access. Additionally, the Remote Sense capability enables you to monitor voltage conditions remotely. This ensures precise voltage regulation, even in complex systems.

The module also includes built-in safety features that enhance its monitoring capabilities. Overcurrent protection prevents damage caused by excessive current, while Overtemperature protection safeguards the module against overheating. These features ensure reliable operation, even in demanding environments. The ruggedized design further enhances durability, making the module suitable for harsh conditions.

The table below summarizes these features and their benefits:

These features make the APTS012A0X3-SRZ a reliable and efficient choice for power management. You can monitor and control your systems with confidence, knowing that the module is designed to meet your needs. By integrating these capabilities, the APTS012A0X3-SRZ ensures your systems remain efficient, safe, and easy to manage.

Real-World Applications of the APTS012A0X3-SRZ

Distributed Power Architectures

Distributed power architectures demand components that deliver efficient power distribution while maintaining flexibility. The APTS012A0X3-SRZ excels in these systems due to its wide input voltage range (4.5Vdc to 14Vdc) and programmable output voltage (0.69Vdc to 5.5Vdc). These features allow you to adapt the module to various power requirements, ensuring compatibility across multiple devices. Its ability to provide up to 12A of output current makes it a reliable choice for high-demand applications.

The module also includes advanced features like remote On/Off control, overcurrent protection, and ruggedized design. These capabilities enhance its durability and safety, even in environments with high shock and vibration. The table below summarizes its advantages in distributed power systems:

By integrating the APTS012A0X3-SRZ into your distributed power architecture, you can achieve efficient power distribution while ensuring system reliability.

Telecommunications and Networking Equipment

Telecommunications and networking equipment require precise and stable power delivery to function effectively. The APTS012A0X3-SRZ meets these needs with its wide input voltage range and programmable output voltage. These features allow you to fine-tune the module for specific equipment requirements, ensuring optimal performance. Its ability to deliver up to 12A of current makes it suitable for high-power devices like routers and switches.

The module’s additional features, such as remote On/Off control and overtemperature protection, enhance its usability in these applications. The ruggedized design ensures reliable operation in environments prone to physical stress. The table below highlights its suitability for telecommunications and networking:

With the APTS012A0X3-SRZ, you can address the unique power requirements of telecommunications and networking equipment while ensuring system stability.

Servers, Storage Systems, and Data Centers

Servers, storage systems, and data centers rely on efficient power distribution to handle their high energy demands. The APTS012A0X3-SRZ provides a compact yet powerful solution for these environments. Its high efficiency (94%) minimizes energy waste, reducing operational costs and heat generation. This ensures stable performance even under heavy workloads.

The module’s compact design allows it to fit seamlessly into space-constrained systems, making it ideal for densely packed server racks. Features like overcurrent protection and remote monitoring capabilities further enhance its reliability. By using the APTS012A0X3-SRZ, you can optimize power management in your data center while maintaining system efficiency and safety.

Industrial Equipment and Motor Control Centers (MCC)

Industrial equipment and motor control centers (MCC) demand reliable and efficient power solutions. You need a module that can handle high power loads while maintaining stability and safety. The APTS012A0X3-SRZ is an excellent choice for these applications. Its advanced features ensure optimal performance in demanding environments.

The APTS012A0X3-SRZ provides a wide input voltage range of 4.5V to 14V and a programmable output voltage of 0.69V to 5.5V. This flexibility allows you to adapt the module to various industrial systems and MCC setups. With a maximum output current of 12A, it can power heavy-duty equipment with ease. Its compact design also makes it ideal for space-constrained motor control center installations.

Safety is a critical factor in MCC environments. The APTS012A0X3-SRZ includes overcurrent protection, overtemperature protection, and undervoltage lockout. These features safeguard your equipment from potential damage, ensuring reliable operation. Its ruggedized design further enhances durability, making it suitable for harsh industrial conditions.

The module’s high efficiency, reaching up to 94%, minimizes energy waste. This reduces heat generation, which is crucial for maintaining stable operation in MCC systems. You can rely on the APTS012A0X3-SRZ to deliver consistent power while keeping energy costs low.

Remote control and monitoring capabilities add another layer of convenience. Features like remote On/Off and remote sense allow you to manage your MCC systems with precision. These capabilities ensure that your motor control center operates efficiently and safely.

By integrating the APTS012A0X3-SRZ into your MCC setup, you can enhance power management, improve system reliability, and reduce operational costs. This module is a reliable solution for industrial equipment and motor control centers.

Why the APTS012A0X3-SRZ Outperforms Alternatives

Superior Efficiency and Performance

The APTS012A0X3-SRZ stands out as a non-isolated PoL module due to its exceptional efficiency and performance. With an impressive 94% efficiency rating, this DC-DC converter minimizes energy loss, ensuring that your systems operate at peak performance. Its ability to deliver up to 12A of output current makes it ideal for high-demand applications, such as servers and industrial equipment. You can rely on its advanced features, including overcurrent and overtemperature protection, to maintain stable operation even under challenging conditions. These safeguards not only enhance reliability but also extend the lifespan of your devices.

Versatility Across Applications

The versatility of the APTS012A0X3-SRZ makes it suitable for a wide range of applications. Its wide input voltage range (4.5Vdc to 14Vdc) and programmable output voltage (0.69Vdc to 5.5Vdc) allow you to adapt it to various power requirements. Whether you are working with telecommunications equipment, data centers, or motor control centers, this module delivers consistent performance. The table below highlights its key features that contribute to its adaptability:

These features ensure that the APTS012A0X3-SRZ meets the demands of diverse applications while maintaining efficiency and reliability.

Cost and Space Savings with Tunable Loop™

The innovative Tunable Loop™ technology in the APTS012A0X3-SRZ offers significant cost and space savings. By reducing the output capacitance needed, this feature decreases overall component costs. It also minimizes the printed wiring board (PWB) area required, making it an excellent choice for space-constrained designs. The table below summarizes these benefits:

With these advantages, you can optimize your power systems without compromising on performance or efficiency. The APTS012A0X3-SRZ provides a compact, cost-effective solution for modern power management challenges.

Reliability and Safety in Harsh Environments

When operating in harsh environments, you need a power module that guarantees reliability and safety. The APTS012A0X3-SRZ is designed to meet these demands with features that ensure consistent performance even under extreme conditions. Its robust construction and advanced safeguards make it a dependable choice for challenging applications.

One of the key features of the APTS012A0X3-SRZ is its overcurrent protection. This safeguard prevents damage caused by excessive current, ensuring your devices remain safe during unexpected power surges. Additionally, the module includes overtemperature protection, which actively monitors and regulates heat levels. This feature prevents overheating, extending the lifespan of both the module and your equipment.

The ruggedized design of the APTS012A0X3-SRZ further enhances its reliability. It can withstand high levels of shock and vibration, making it suitable for environments where physical stress is common. Whether you’re working in industrial settings or deploying equipment in remote locations, this module delivers consistent performance without compromising safety.

Tip: Choosing a power module with built-in protections like the APTS012A0X3-SRZ reduces the risk of system failures and costly repairs.

The table below highlights the features that make the APTS012A0X3-SRZ ideal for harsh environments:

By integrating these features, the APTS012A0X3-SRZ ensures your systems remain operational and secure, even in the most demanding conditions. You can trust this module to deliver reliable power while protecting your valuable equipment.

The APTS012A0X3-SRZ offers you a versatile and efficient solution for modern power systems. Its innovative features, such as Tunable Loop™ technology and advanced thermal management, ensure reliable performance across various applications. You can trust its RoHS compliance to meet environmental and safety standards, reducing your impact on the planet. Whether you work in telecommunications, industrial systems, or networking, this module delivers consistent energy efficiency and unmatched value. By choosing the APTS012A0X3-SRZ, you optimize your systems while supporting sustainable practices.

FAQ

What is the APTS012A0X3-SRZ used for?

The APTS012A0X3-SRZ is a DC-DC converter designed for efficient power management. You can use it in applications like telecommunications, data centers, industrial equipment, and motor control centers. Its high efficiency and compact design make it ideal for modern power systems.

How does Tunable Loop™ technology benefit me?

Tunable Loop™ technology allows you to adjust the module’s dynamic response. This feature improves system stability and reduces the need for additional components. You save space, lower costs, and gain better control over your power systems.

Is the APTS012A0X3-SRZ safe to use?

Yes, the module includes built-in safety features like overcurrent protection, overtemperature protection, and undervoltage lockout. These safeguards protect your devices from damage and ensure reliable operation, even in demanding environments.

Can I use the APTS012A0X3-SRZ in harsh conditions?

Absolutely! The APTS012A0X3-SRZ operates efficiently in temperatures ranging from -40°C to 85°C. Its ruggedized design withstands shock and vibration, making it suitable for industrial and remote applications.

How do I adjust the output voltage?

You can adjust the output voltage using an external resistor. This feature lets you set the voltage between 0.69Vdc and 5.5Vdc, ensuring compatibility with various devices and systems.

Tip: Refer to the product datasheet for detailed instructions on voltage adjustment.
