In the rapidly evolving world of electronics, the demand for efficient, reliable, and high-performance power modules has never been greater. Whether you are designing a new piece of telecommunications equipment, working on a cutting-edge server or storage solution, or developing the next big thing in networking technology, finding the right power module can make all the difference. Today, we are excited to introduce the APTS003A0X-SRZ 12V PicoTLynx™ 3A DC-DC Power Module from OmniOn Power, a product that stands out for its versatility, advanced features, and robust performance. And with Tangsemi as a trusted distributor, getting your hands on this high-quality module has never been easier.

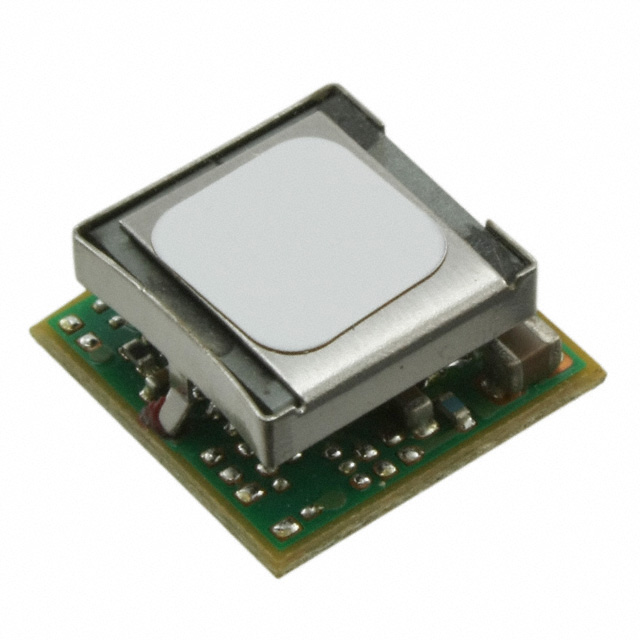

Understanding the APTS003A0X-SRZ 12V PicoTLynx™ 3A Power Module
The APTS003A0X-SRZ is a non-isolated DC-DC converter designed to deliver up to 3A of output current. It operates over a wide input voltage range of 4.5Vdc to 14Vdc and provides a precisely regulated output voltage from 0.59Vdc to 5.5Vdc, programmable via an external resistor. This flexibility makes it suitable for a wide range of applications, from simple standalone devices to complex distributed power architectures.
Key Features and Benefits
Wide Input Voltage Range: The module can handle input voltages from 4.5Vdc to 14Vdc, making it highly adaptable to various power supply scenarios.
Adjustable Output Voltage: With an output voltage range of 0.59Vdc to 5.5Vdc, the APTS003A0X-SRZ can be fine-tuned to meet specific application requirements using an external resistor.
Remote On/Off Control: This feature allows for remote control of the module's operation, adding an extra layer of flexibility and control to your power management system.
Overcurrent and Overtemperature Protection: Built-in protection circuits ensure the module operates safely even under fault conditions, safeguarding your equipment from damage.
Output Voltage Sequencing (EZ-SEQUENCE™): This feature enables precise control over the startup and shutdown sequences of multiple modules, ensuring reliable power management in complex systems.
Tunable Loop™: This innovative feature allows users to optimize the dynamic response of the converter to match the load, reducing the need for external capacitance and saving on cost and PWB area.
RoHS Compliance: The module adheres to the RoHS directive, ensuring it is environmentally friendly and suitable for use in a wide range of industries.
Small Form Factor: With dimensions of 12.2 mm x 12.2 mm x 6.25 mm, the APTS003A0X-SRZ is compact and ideal for space-constrained designs.
Applications
The versatility of the APTS003A0X-SRZ makes it suitable for a wide range of applications, including:
Distributed Power Architectures: Ideal for systems that require multiple power sources distributed across different components.
Intermediate Bus Voltage Applications: Perfect for applications that need intermediate bus voltages to power various subsystems.
Telecommunications Equipment: Provides reliable power for critical telecom components.
Servers and Storage Applications: Ensures stable power supply for data centers and storage solutions.
Networking Equipment: Suitable for routers, switches, and other networking devices.
Industrial Equipment: Robust enough to handle the demands of industrial applications.
Technical Specifications
Absolute Maximum Ratings
Input Voltage: -0.3V to 15Vdc
Operating Ambient Temperature: -40°C to 85°C (Regular), -40°C to 105°C (Ruggedized)
Storage Temperature: -55°C to 125°C
Electrical Specifications
Operating Input Voltage: 4.5Vdc to 14.0Vdc
Maximum Input Current: 3.5Adc
Input No Load Current: 17mA to 55mA (depending on output voltage setting)
Input Stand-by Current: 1mA
Output Specifications
Output Voltage Set-point: Programmable from 0.59Vdc to 5.5Vdc
Output Voltage Regulation: ±0.4% of set voltage (for VO ≥ 2.5Vdc)
Output Ripple and Noise: 110mV pk-pk to 45mVrms (depending on output voltage and load conditions)
Output Current: Up to 3Adc
Efficiency
Efficiency: Up to 92.6% (depending on output voltage and load conditions)
Why Choose Tangsemi for Your OmniOn Power Needs?
Tangsemi is a leading distributor of high-quality electronic components, and we are proud to offer the APTS003A0X-SRZ 12V PicoTLynx™ 3A power module from OmniOn Power. Our commitment to providing top-notch products and exceptional customer service ensures that you get the right components for your projects, every time.
Expert Support
Our team of experts is always ready to assist you with technical queries, application guidance, and support. Whether you need help with selecting the right module or have questions about integrating it into your system, Tangsemi has you covered.
Reliable Supply Chain
With a robust supply chain and inventory management system, Tangsemi ensures that you receive your components on time, every time. We understand the importance of timely delivery in project timelines and strive to exceed your expectations.
Quality Assurance
Tangsemi adheres to the highest standards of quality assurance, ensuring that every module you receive meets the stringent specifications and reliability standards set by OmniOn Power.
Custom Solutions
Need a custom solution? Tangsemi can work with you to tailor the APTS003A0X-SRZ to meet your specific requirements, ensuring that you get the exact power module you need for your application.
Conclusion
The APTS003A0X-SRZ 12V PicoTLynx™ 3A power module from OmniOn Power is a versatile, high-performance solution designed to meet the demanding power needs of modern electronics. With its wide input voltage range, adjustable output voltage, advanced features like Tunable Loop™ and EZ-SEQUENCE™, and robust reliability, this module is an excellent choice for a wide range of applications. And with Tangsemi as your trusted distributor, you can rely on expert support, timely delivery, and top-quality products to power your innovations.
Ready to take the next step? Contact Tangsemi today to learn more about the APTS003A0X-SRZ 12V PicoTLynx™ 3A power module and how it can enhance your next project.
